MD Medium Duty Electrode Holder

MD Medium Duty Electrode Holder

Category
Whatsapp
Inquiry

Description

HTM MD medium duty electrode holders are suitable for the installation of stainless steel electrodes for detecting water levels in open tanks. The electrode holders are commonly used in reservoirs where the water levels are used for the control of pumps and alarm signaling.
HTM MD medium duty electrode holders are cast aluminum electrode holders with a cylindrical-shaped cover fastened to the holder by means of four bolts. The termination clamps inside each electrode holder, which consist of wiring terminals and an insulation board, will hold the electrode firmly while providing electrical cables to be terminated at the electrodes. Each electrode holder is capable of holding three to five lengths of electrodes. A hot-dipped galvanized bracket for mounting the electrode holder is provided for each unit.

Application

HTM MD medium duty electrode holders are designed for rugged outdoor environments where the holders are subject to severe weather conditions. They are suitable for mounting on top of reservoirs without any shelter or protection device to hold electrodes for level control and alarm detection.

Features

  • Weather Resistance HTM MD medium duty electrode holders are fabricated from non-corrodible materials or are heavily coated to withstand severe weather conditions.
  • Mounting Flexibility The mounting bracket of HTM MD medium duty electrode holders is designed to have flexible supports which allow the holders to be mounted on flat horizontal, vertical, or sloped surfaces at any angle. No additional brackets or modifications are needed.
  • Ease of Installation The electrodes mounted onto HTM MD medium duty electrode holders are accessible from the top when the cover is removed. No other method of electrode installation can be made easier.
  • Rigid Support HTM MD medium duty electrode holders are constructed from rigid materials. Every holder can be trusted for its superior performance where no maintenance is required.

Specifications

  • Electrode type: Insulated 6mm dia. OD stainless steel seamless pipe with sealed ends
  • Electrode length: 200mm to 10000mm
  • Number of electrodes: 3 or 5
  • Insulation resistance: 20MΩ minimum
  • Insulation materials: Fibre
  • Type of mounting: Flange
  • Coating: Polyester powder, navy blue
  • Protection: IP55
  • Total weight: 6 kg
  • Electrical conduit entry: 20mm dia BSPT
  • Materials of construction:
    • Cover & body: Aluminum
    • Bolts: SS304
    • Termination clamp: Brass
    • Mounting bracket: Hot-dipped galvanized steel

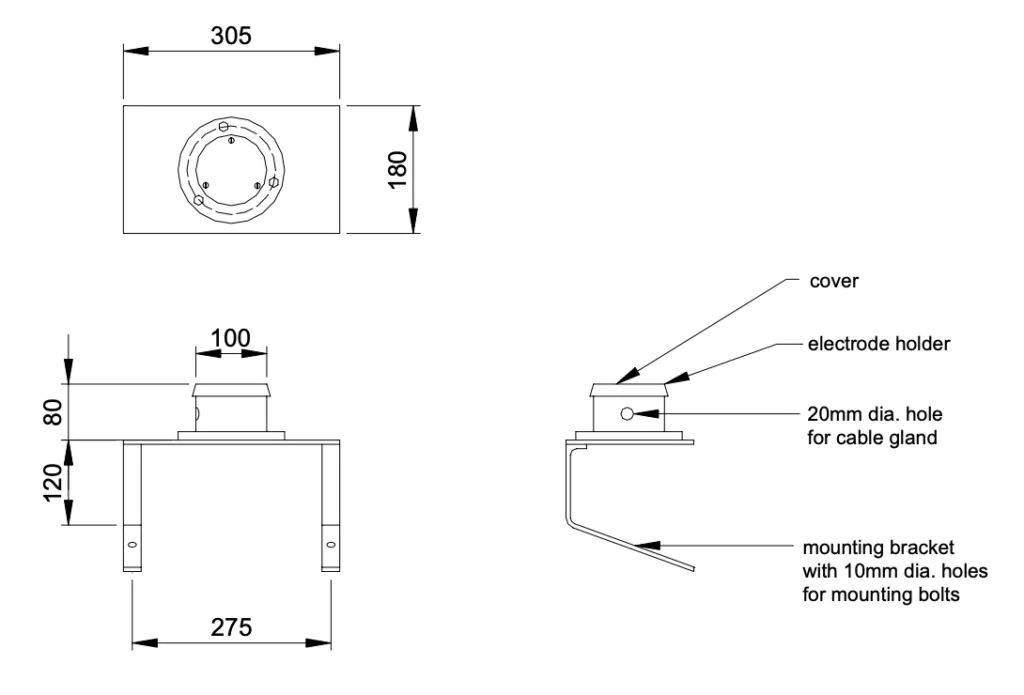

Dimensions & Connections
